Kratos Design Group Ruggedized Offset Mount for Modlite & Scout Lights

MSRP: $42.99
You save $3.00

$39.99

Order by 2PM CST for Same Day Shipping*
Shipping As Low As $1.99
100% Live Inventory, No Back Orders

Recessed Lug Support: Unlike many mounts that rely solely on screw tension, the KDG Scout Mount is designed with recesses that provide additional support to the mounting lugs. This three-sided support structure increases the mount’s durability in the event of impacts to the light.



Weight: 0.8 oz (24 grams) with hardware
Length: 1.2″
Material: 7075-T6 Aluminum
Finish: Type 3, Class II Hardcoat Anodzie
Made in USA

(5 customer reviews)

The Kratos Design Group Ruggedized Scout Mount for MLOK is designed specifically for the Modlite family of weapon mounted lights and are compatible with all lights that use the Surefire Scout Light mounting pattern like the M600 & M300. Other lights such as Arisaka 300, 600 & 18650 series lights, Olight Odin and Streamlight Protac Rail Mount HL-X are compatible as well.

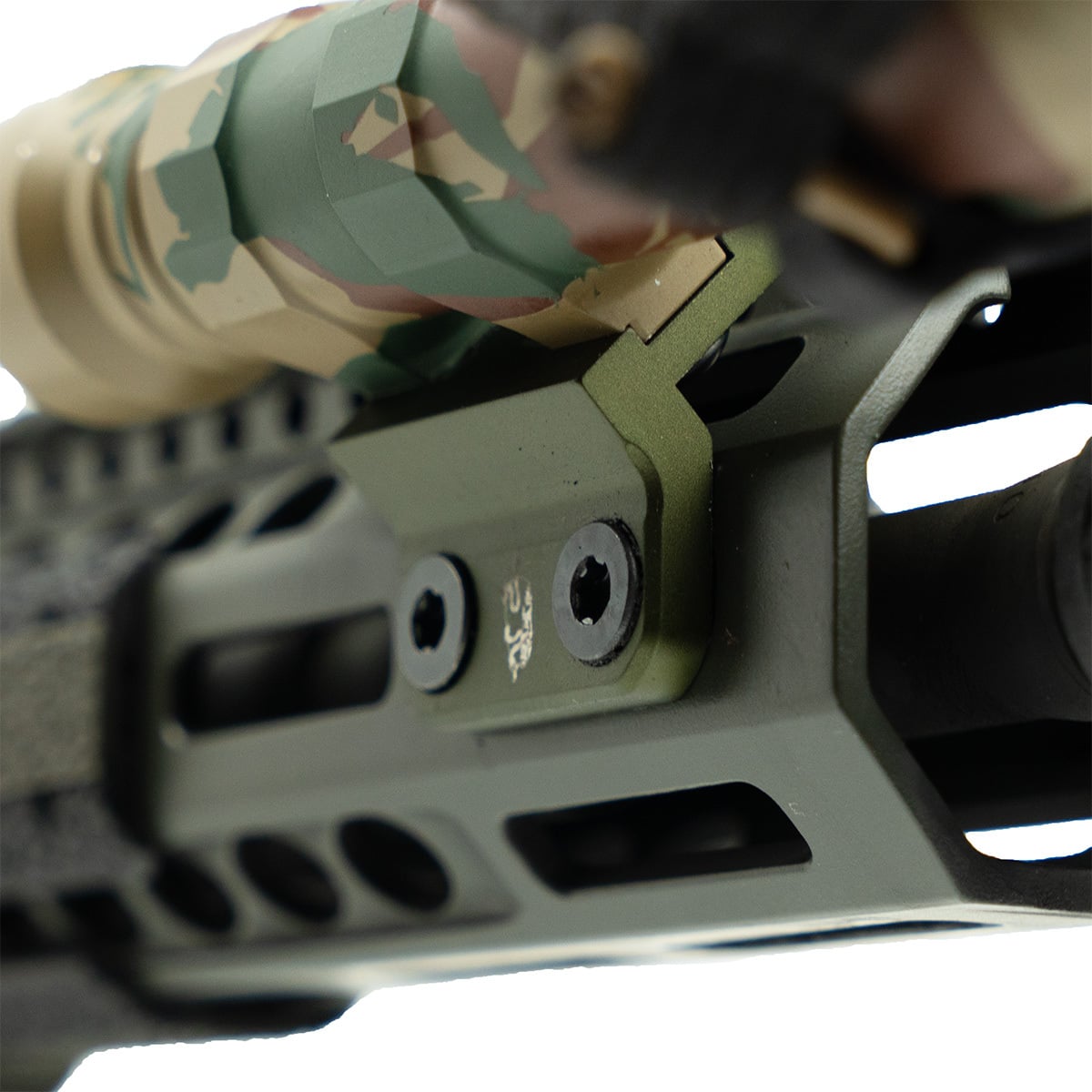

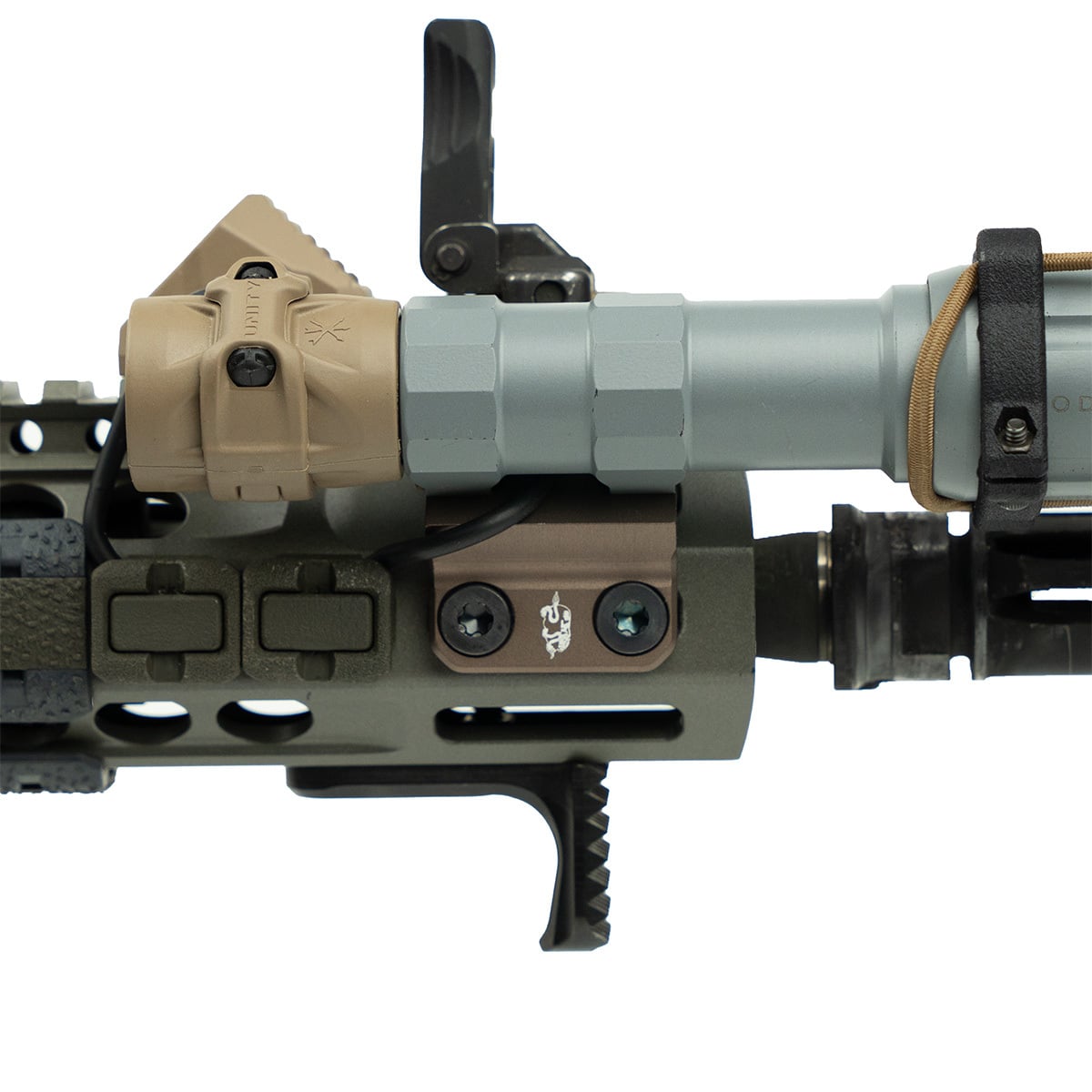

The KDG Scout Mount places the light at a 45 degree angle from the rail and brings the light closer to the handguard.

Machined from 7075 aluminum with a Type 3, Class 2 Hardcoat anodized finish available in Black, FDE & OD Green. The mount weighs 0.5 oz (16 grams)

Recessed Lug Support: Unlike many mounts that rely solely on screw tension, the KDG Scout Mount is designed with recesses that provide additional support to the mounting lugs. This three-sided support structure increases the mount’s durability in the event of impacts to the light.

The mount is reversible and can be mounted at various locations along the rail. When oriented upwards, the light can be placed at 1:30 or 10:30. When oriented downwards, the light can be placed at 4:30 or 6:30. An alternative mounting position also allows certain lights to be used in conjunction with a BE Meyers MAWL on the same side.

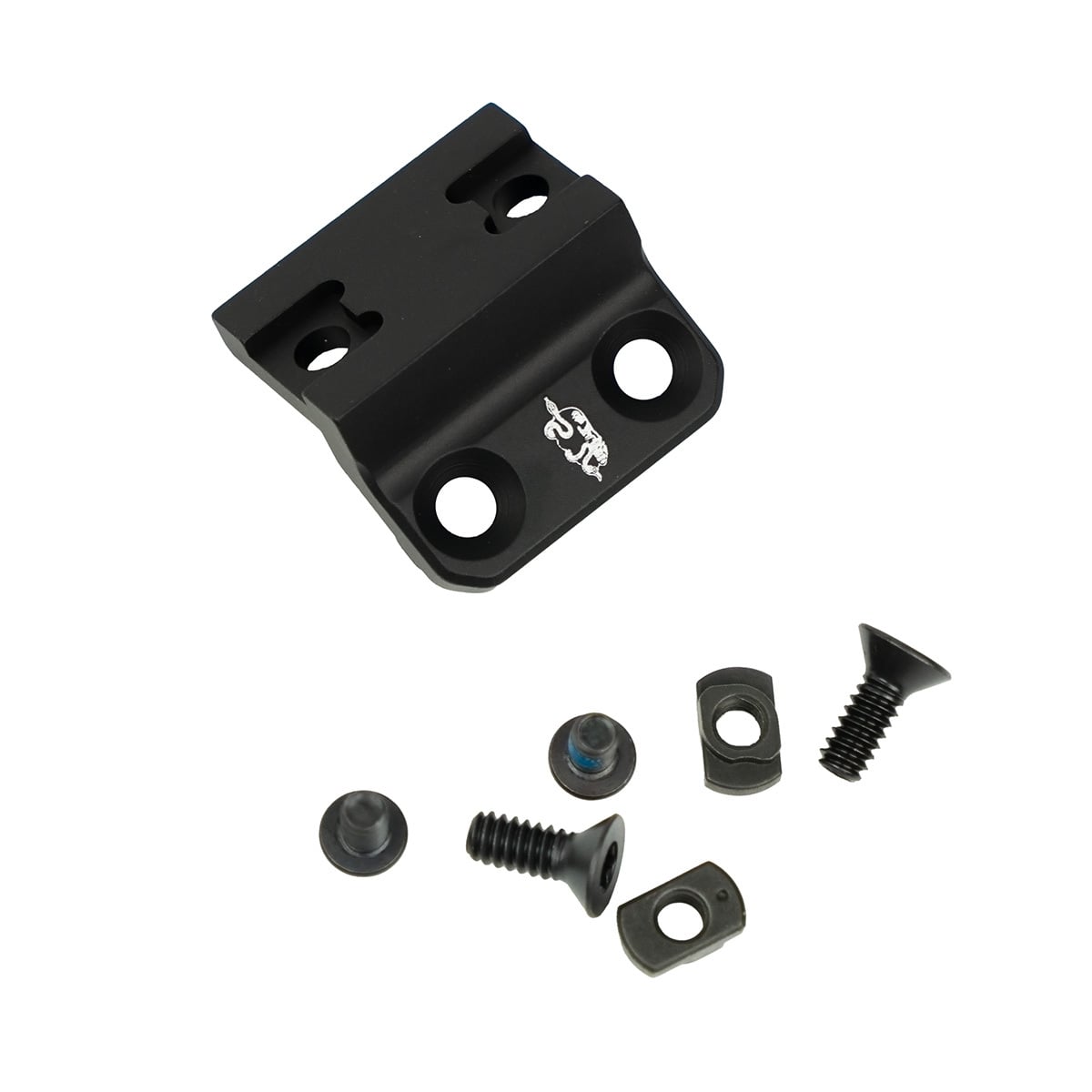

Included Hardware: The package includes all necessary components for attaching your light and securing the mount to an MLOK rail system. Please note that a T25 Torx and 3/32” Hex driver (not included) are required for installation.

Recommended Torque: For optimal installation, apply 30 inch lbs of torque for MLOK screws and 20 inch lbs for light body screws, using Loctite 243.
MLOK Installation Guide

Hardware Specifications

  • Light Body Screws: 8-32 thread, 5/16” length, with a 3/32” Hex drive, offering 120,000 psi tensile strength and a Class 3A thread fit.
  • MLOK Screws: 10-24 thread, 1/2” length, with a T25 drive, providing 140,000 psi tensile strength.
  • MLOK Nuts: Precision machined in the USA, treated with a black nitrided finish for enhanced durability.

Detailed Hardware Specifications

Light Body Screws:

Thread: 8-32
Length: 5/16”
Drive Size: 3/32” Hex
Tensile Strength: 120,000 psi
Thread Fit: Class 3A
Thread Locker Temp Range: -70° to 250° F
Material: Black-Oxide Alloy Steel
Hardness: Rockwell C39

MLOK Screws:

Thread: 10-24
Length: 1/2”
Drive Size: T25
Tensile Strength: 140,000 psi
Thread Fit: Class 3A
Material: Black-Oxide Alloy Steel
Hardness: Rockwell C39


Weight:  0.8 oz (24 grams) with hardware
Length: 1.2″
Material: 7075-T6 Aluminum
Finish: Type 3, Class II Hardcoat Anodzie
Made in USA



Compatibility:

Modlite:
PLH, PLHv2, OKW

Surefire:
M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V,, M612, M622, M603V, M612V, M622V, M600B, M600C, M600P, M600U, M600V, M600DF

Streamlight:
Protac Rail Mount 1, Protac Rail Mount 2, HL-X


Arisaka:
300, 600, 18650 Series

Cloud Defensive:
REIN


Olight:
Odin





Additional information

Weight 1 oz
Dimensions 3 × 3 × 1 in
Color

Black Anodized, ODG Anodized, FDE Anodized
