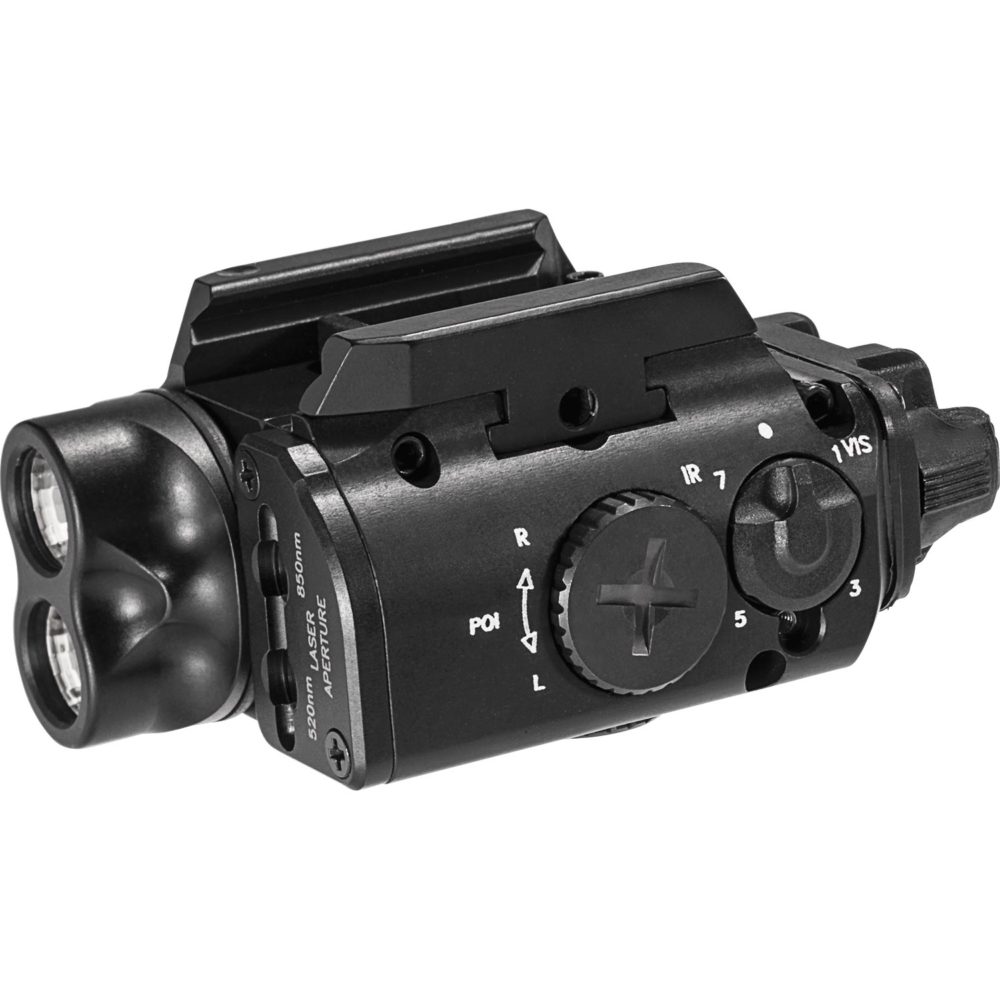

Surefire XVL2_IRC Pistol & Carbine Light/Laser Module System | Black & Tan


Order by 2PM CST for Same Day Shipping*
Shipping As Low As $1.99
100% Live Inventory, No Back Orders

The XVL2-IRC Pistol & Carbine Light/Laser Module system is a paradigm shift in light and aiming laser systems. Proven technological advancements in tactical illumination are key design elements in the XVL2-IRC. Custom MaxVision Beam technology shapes the illumination beam into one that provides the optimum mix of projected illumination plus wide angle illumination for target acquisition and situational awareness. The MaxVision Beam technology keeps the XVL2-IRC profile small and weight to a minimum to maximize the efficiency and efficacy of the warfighter.

The MaxVision Beam head assembly is paired with a coaligned, dual-beam visible/infrared laser module. The XVL2-IRC laser carriage system houses a visible green (520nm) laser and an 850 nm infrared laser. This unique carriage system facilitates alignment of the visible and infrared laser simultaneously via an x-axis and y-axis adjustment platform. The x-axis and y-axis adjustment screws are sealed to protect against water ingress and to prevent contamination from debris. The adjustment screws feature incremental milliradian adjustment.

The dual laser/LED system of the XVL2-IRC efficiently generates both white and infrared illumination from a dual emitter LED module that allows the delivery of useful levels of tactical light and efficient run times in both visible and infrared spectrums using one 123A lithium battery. An ambidextrous, momentary and constant-on switch located at the rear of the unit’s body provides redundant switching. The local switching also facilitates using the XVL2-IRC as a handheld light if removed from the host weapon.


  • Virtually indestructible white-light and infrared LEDs regulated to maximize output and runtime
  • Integral ambidextrous momentary- and constant-on switching
  • Attaches securely to both Universal and Picatinny accessory rails
  • Weatherproof O-ring and gasket sealing to IPX8 standards (66 feet, 2 hours)
  • Accepts optional pressure-activated remote switches for precision control without altering grip on weapon
  • Includes a nylon pouch to store the XVL2-IRC, mount key, cleaning cloth and lens cleaner

Bright white light, stealthy infrared illumination and green and IR aiming lasers: the SureFire XVL2 Pistol & Carbine Light/Laser Module System offers the operator a wide range of options. Made of hard-anodized aluminum, O-ring and gasket sealed against the elements, this compact unit delivers 400 lumens of white light or 300mW of IR illumination. The tactical laser works at up to 47mW in green and 3mW in IR (plus or minus 10%), and there’s also a training mode with a 5mW green laser and 0.7mW IR. The lasers are aligned via an x- and y-axis adjustment platform, with MRAD adjustment increments and adjustment screws sealed against water and debris ingress.

The functions are controlled by an ambidextrous momentary and constant-on switch at the back of the XVL2, which is 3″ long, weighs 5 ounces, and mounts on Picatinny and other common rails. The unit is powered by one CR123A battery and has a runtime of 1.5 hours.

Light & Laser Performance
  • 400-lumen white light
  • 300mW infrared light
  • Green (47mW, 520nm) and IR (3mW, 850nm) tactical lasers
  • Training mode lasers (5mW green, 0.7mW IR)
  • Lasers align on X-axis and Y-axis adjustment platform
  • MRAD adjustment increments
  • Ambidextrous toggle, momentary and constant-on
Construction Details
  • Anodized aluminum housing
  • O-ring and gasket sealed
  • Mounts on Picatinny and other common rails
  • Can be used as handheld light
  • Runs 1.5 hours on fresh CR123A battery (included)
  • Digitally regulated output for consistent performance and maximized output


Length 3.0  inches
Weight w/Batteries 5  ounces
Batteries 123A
Tactical Mode Green Laser <5  mW (+/- 10%)
Tactical Mode Infrared <0.7  mW (+/- 10%)
Finish Mil-Spec  Hard Anodized
Construction Aluminum
Output White 400  Lumens
Runtime White 1.5  Hours*
Output Infrared 300mW
Runtime Infrared 2.75  Hours
*All performance claims tested to ANSI/NEMA FL1-2009 Standard.

Read about this light in RECOIL MAGAZINE


XVL2-IRC 084871329095
XVL2-TN-IRC 084871329101


ITAR Notice

    • Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

Laser Warning

    • This device emits laser radiation that can injure the eyes.


    • — Never look directly into the laser beam or stare at it at close range.


    • — Never shine the laser in a person’s eye at close range.


    • — Do not direct the beam at anyone operating a vehicle, boat, or aircraft, as the beam appears very bright (especially at night) in a person’s eyes, even at great distances.


    • — Be aware that beam can be reflected off of mirrors or shiny surfaces.


    — Use the laser sight only for its intended purpose.


Additional information

Weight 8 oz
Dimensions 8 × 6 × 2 in
