VKTR Industries Hammer Forged DI Barrels with Custom Gas Block

$260.00$295.00

Order by 2PM CST for Same Day Shipping*
Shipping As Low As $1.99
100% Live Inventory, No Back Orders

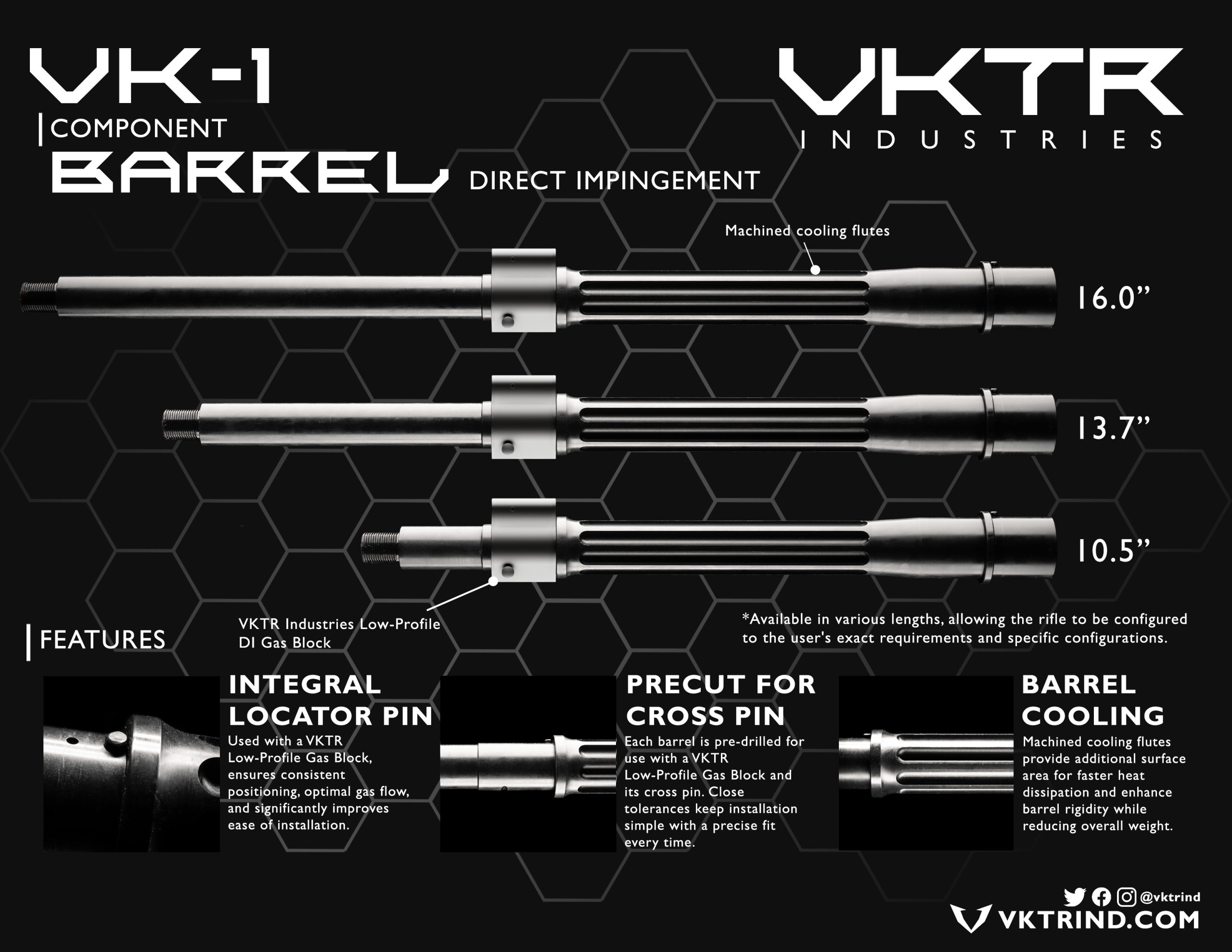

The Direct Impingement Barrels are available in three different lengths to allow for specific user configurations: 16.0”, 13.7”, and 10.5”.

The VKTR Industries Direct Impingement Barrels are available in three different lengths to allow for specific user configurations: 16.0”, 13.7”, and 10.5”.

Features

  • Patented Integral Locator Pin – Used with a VKTR Low-Profile Gas Block, ensures consistent positioning, optimal gas flow, and significantly improves ease of installation.
  • Precut for Cross Pin – Each barrel is pre-drilled for use with a VKTR Low-Profile Gas Block and its cross pin. Close tolerances keep installation simple with a precise fit every time.

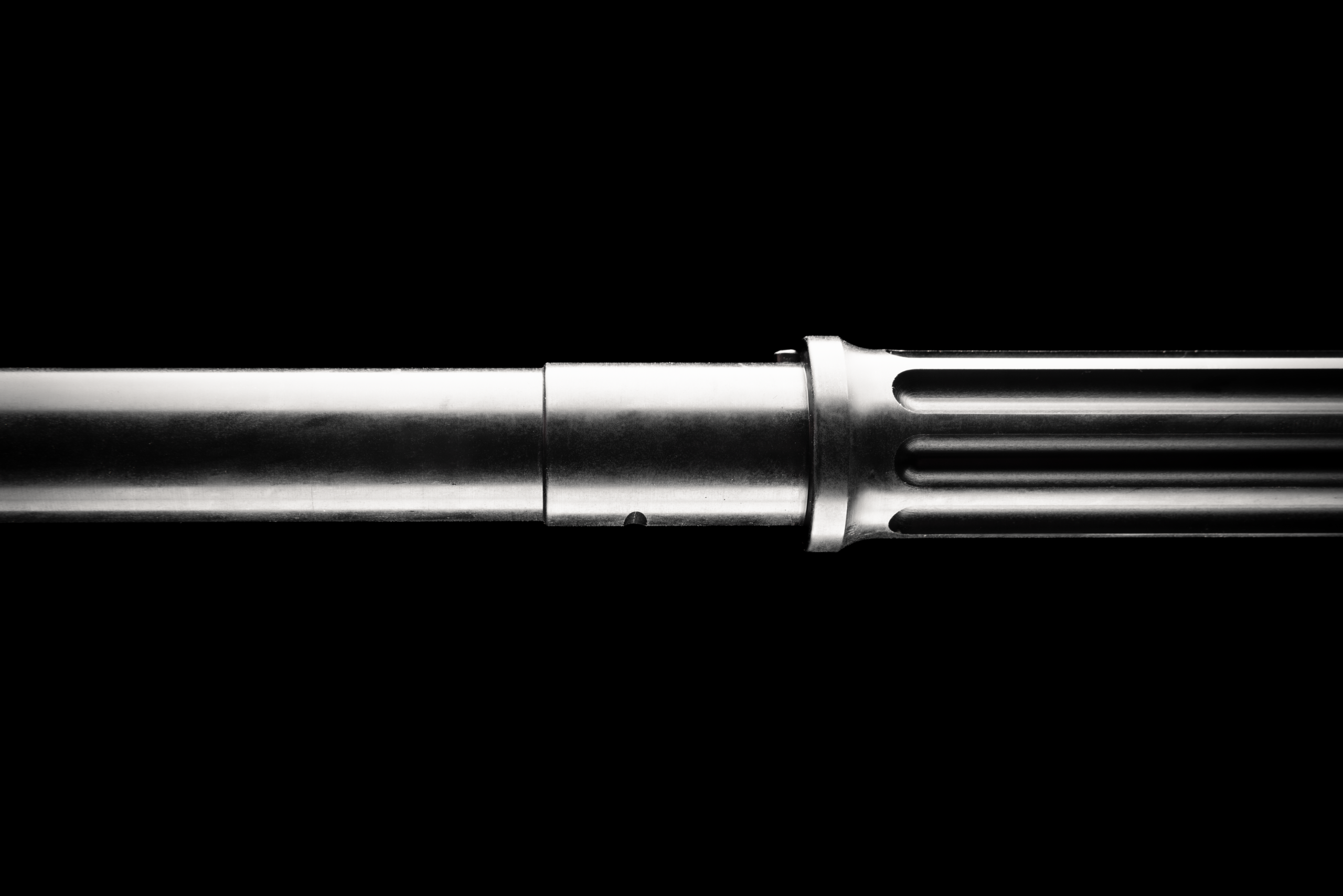

  • Barrel Cooling – Machined cooling flutes provide additional surface area for faster heat dissipation and enhance barrel rigidity while reducing overall weight.

The Hammer Forged Direct Impingement Barrels are available in three different lengths to allow for specific user configurations: 16.0”, 13.7”, and 10.5”. VKTR utilizes a 1:7 (1 turn every 7 inches) twist rate on our 5.56 NATO barrels. It will stabilize any of the lighter weight 5.56 projectiles, as well as newer heavier bullet profiles, permitting the greatest possible performance with both. Features a true 5.56 NATO chamber for optimal reliability with higher-pressure ammunition, and is equipped with M4 style feed ramps. Requires no break-in period.

Features

  • Patented Integral Locator Pin – Used with a VKTR Low-Profile Gas Block, ensures consistent positioning, optimal gas flow, and significantly improves ease of installation.
  • Precut for Cross Pin – Each barrel is pre-drilled for use with a VKTR Low-Profile Gas Block and its cross pin. Close tolerances keep installation simple with a precise fit every time.
  • Barrel Cooling – Machined cooling flutes provide additional surface area for faster heat dissipation and enhance barrel rigidity while reducing overall weight.

Additional Features

  • MIL-Spec CrMOV
  • Lightweight
  • Hammer Forged
  • Carbine Gas Barrel
  • Black Nitride Finish
  • .750 Gas Journal w/ VKTR gas block with notch for alignment pin (non-VKTR gas blocks will NOT work.)
Twist rate
VKTR uses a 1:7 (1 turn every 7 inches) twist rate on our 5.56 NATO barrels. It will stabilize any of the lighter weight 5.56 projectiles, as well as newer heavier bullet profiles, permitting the greatest possible performance with both.

Chamber
Our barrels feature a true 5.56 NATO chamber for optimal reliability with higher-pressure ammunition.

Feed ramps
Supplied with M4 style feed ramps

Weight

Gas Port
16” Barrel: .070”
13.7” Barrel: .0635”
10.5” Barrel: .082”

*VKTR barrels require no break-in period.
**Gunsmith installation is recommended for all VKTR parts. VKTR cannot warranty items damaged by improper installation.
